Alloy Steel/Stainless Steel Tension S Type Load Cell IN-MS-006

Product Categories

Innovation Electronic Co.,Ltd

Contact Now

Name: Alloy SteelStainless Steel Tension S Type Load Cell INMS006
Brand: Innovation
Price: 1 USD

Place of Origin : China Load Cell/Force Sensor

Brand Name : Innovation

Model Number : IN-MS-006

MOQ : 1 PCS

Price : USD1-USD100

Payment Terms : L/C, T/T

Supply Ability : 1000PCS/MONTH

Delivery Time : 7-15 days

Packaging Details : carton

Material : Alloy Steel/Stainless Steel

Capacity : 10-5000KG Load Cell

Contact Now

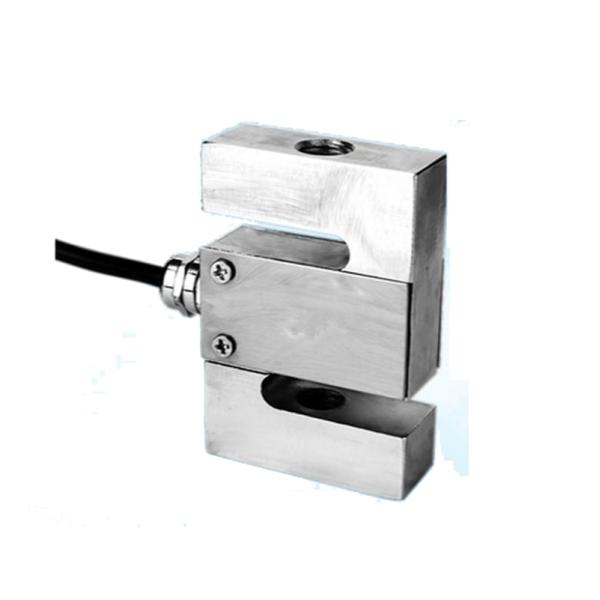

Alloy steel/Stainless Steel Tension S Type Load Cell IN-MS-006

Alloy Steel/Stainless Steel Tension S Type Load Cell IN-MS-006

Capacity	10-5000KG	Material	Alloy steel/Stainless Steel
Rated Output	2.0/3.0±10%mV/V	Output Impedance	350±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	0.03%F.S.	Recommended Excitation	5-10V
Hysteresis	0.03%F.S.	Maximum Excitation	15V
Repeatability	0.03%F.S.	Compensated Temp Range	-10~60ºC
(30)Creep (30min)	0.03%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.025%F.S./10ºC	Safe Load Limit	150%
Temp Effect on Zero	0.025%F.S./10ºC	Ultimate Load Limit	200%
Input Impedance	385±5Ω	Cable Size	φ5x 3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
